AEPS GroupProduct guide

JETDiV75-V1

Output power up to 75 W
Power density up to 46 W/In³
Efficiency up to 88 %
58х37х11 mm
Case temperature range -60° to +110° C
Request units PDF Datasheet

JETDiV150-V2

Output power up to 150 W
Power density up to 60 W/In³
Efficiency up to 90 %
58х56х13 mm
Case temperature range -60° to +110° C
Request units PDF Datasheet

JETDiV300-V3

Output power up to 300 W
Power density up to 60 W/In³
Efficiency up to 90 %
117х56х13 mm
Case temperature range -60° to +110° C
Request units PDF Datasheet

JETDiV600-V4

Output power up to 600 W
Power density up to 82 W/In³
Efficiency up to 90 %
119х63х16 mm
Case temperature range -60° to +110° C
Request units PDF Datasheet

JETDiR75-R(V300C)

V300CxxM75 replacement, 180-375 VDC input
Output power up to 75 W
Dimensions of 58x37x13 (mm)
Request units PDF Datasheet

JETDiR300-R(V375B)

V375BxxM300 replacement, 250-425 VDC input
Output power up to 300 W
Dimensions of 58x56x13 (mm)
Request units PDF Datasheet

JETDiR500-R(V300A)

V300AxxM500 replacement, 180-375 VDC input
Output power up to 500 W
Dimensions of 117x56x13 (mm)
Request units PDF Datasheet

DC/DC: 32 W JETDiR32, 270 Vin, “Alodine” coating, MIL-STD-461 built-in

Output power up to 32 W, 230-350 Vin (450 Vin transient)
MIL-STD-461 built-in
Typical efficiency 85 %
22x60x15 mm
Case operating temp. range up to -60° to +130° C on request
Request units PDF Datasheet

DC/DC: 70 W JETDiR70, 180 Vin, “Alodine” coating, MIL-STD-461 built-in

Output power up to 70 W
MIL-STD-461 fully included
Efficiency up to 87 %
61x59x13 mm
Case operating temp. range up to -60° to +130° C on request
Request units PDF Datasheet

DC/DC: 500 W JETB500 block, 40-170 (tran. 200) VDC in, 75-110 VDC out, fanless

Output power up to 500 W
40-170 (tran. 200) VDC in, 75-110 VDC out
Ambient operating temp. range -50° to +115° C
Request units PDF Datasheet

DC/DC: 700 W JETDiR700, 27-40 VDC out

Output power up to 700 W
18-40 VDC in, 27-40 VDC out
Efficiency up to 92 %
117x61x13 mm
Case operating temp. range up to -60° to +130° C on request
Request units PDF Datasheet

DC/DC: 1500 W JETDiR1500, 370 Vin, “Alodine” coating

Output power up to 1500 W, 230-350 Vin (450 Vin transient)
Unlimited output capacity charging
Efficiency up to 94 %
119x63x15 mm
Case operating temp. range up to -60° to +130° C on request
Request units PDF Datasheet

DC/DC: 1600 W JETDiR-MIL, 100-210 VDC in, 28 or 48 VDC out, MIL-STD-461F built-in

Output power up to 1600 W, 100-210 Vin
MIL-STD-461F built-in
Typical efficiency 88 %
124x70x35 mm
Case operating temp. range up to -40° to +95° C
Request units PDF Datasheet

DC/DC: 4000 W JETDH4000 converter, 300-620 VDC in, 144 VDC out, fanless

Output power up to 4000 W
300-620 VDC in, 144 VDC out
Efficiency up to 94 %
300х170х39 mm
Case operating temp. range up to -50° to +85° C on request
Request units PDF Datasheet

DC/DC: 4000 W JETDB4000 block, 320 VDC in, 320 VDC and 6×28 VDC out, fanless

Output power up to 4000 W
7 independent outputs
Ethernet LAN control
Request units PDF Datasheet

DC/DC: 4500 W block, fanless

4500 W
Case operating temp. range -60° to +130° C
Current sharing parallel operation of 5 units
Request units PDF Datasheet

DC/DC: 16.5 kW JETB16500 block, 320 VDC in, 11×28 VDC output channels, fanless

Output power up to 16 500 W
11 independent outputs
Ethernet LAN control
Request units PDF Datasheet

TEST3

testse
Request units PDF Datasheet

AC/DC: 150 W JETA150-LP, 115 VAC 400 Hz input

Output power up to 150 W
115 VAC 400 Hz input
Efficiency up to 91 %
110х61х21 mm
Case operating temp. range up to -50° to +85° C on request
Request units PDF Datasheet

AC/DC: 150 W IBP150 (UPS), fanless

Output power 150 W
19" mounting
Uninterruptible power supply
RS-232 interface
Request units PDF Datasheet

AC/DC: 300 W IBP300 (UPS), fanless

Output power 300 W
19" mounting
Uninterruptible power supply
RS-232 interface
Request units PDF Datasheet

AC/DC: 600 W IBP600 (UPS), fanless

Output power 600 W
19" mounting
Uninterruptible power supply
RS-232 interface
Request units PDF Datasheet

AC/DC: 1200 W JETAB1200 block, 19″ rack 3U height, 5 outputs, fanless

Output power up to 1200 W
Fanless operation
Ambient operating temperature range -50° С … +50° С
For 19" rack, 3U height
Request units PDF Datasheet

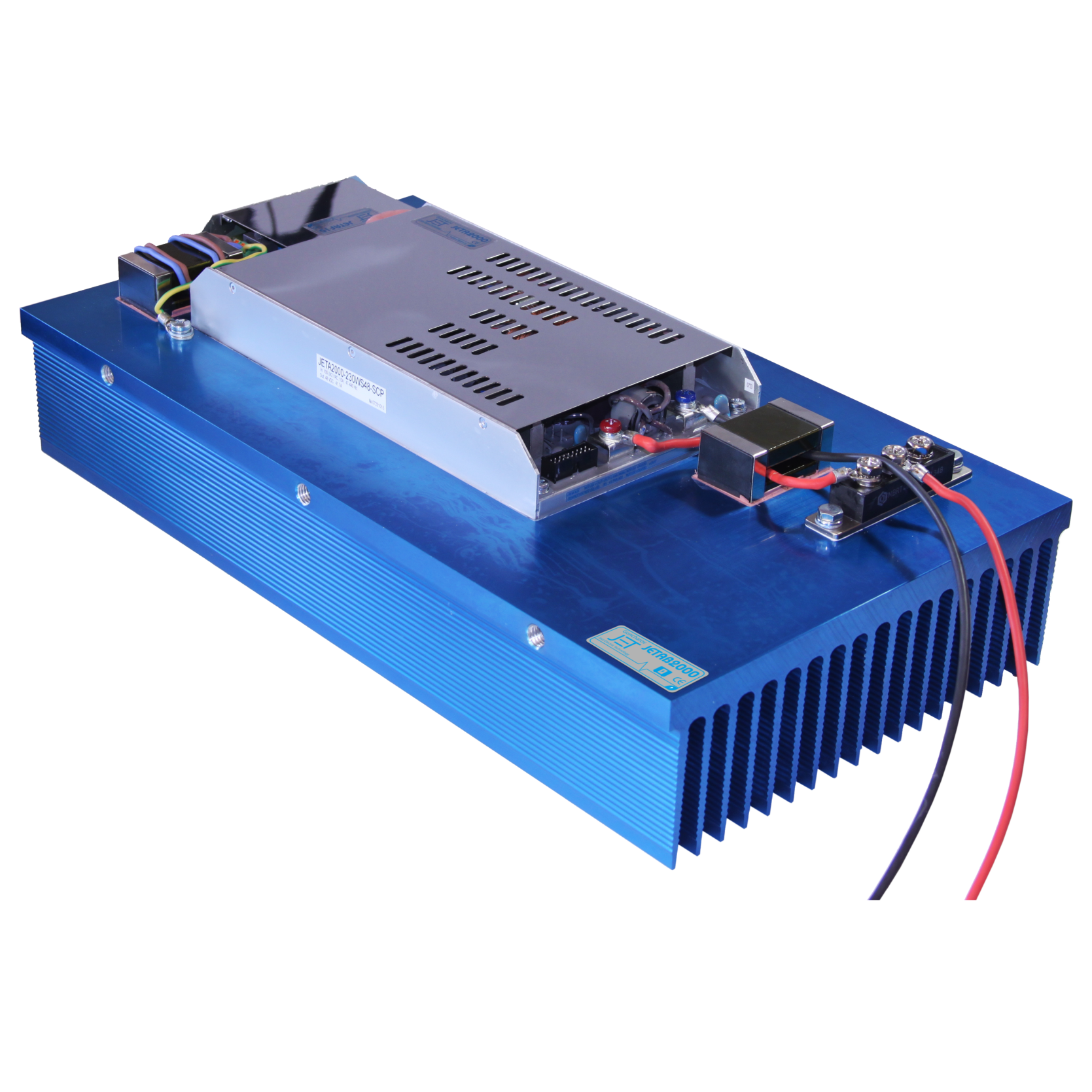

AC/DC: 2000 W JETAB2000 block, with integrated filtering and cooling, fanless

Output power up to 2000 W
Efficiency up to 93 %
Ambient operating temp. range -50° to +85° C
Request units PDF Datasheet

AC/DC: 3000 W JETNAB3000-H block, 320-480 VAC in, 28 VDC out, 30 ms hold-up

Output power up to 3000 W
320-480 VAC in, 28 VDC out
Efficiency up to 93 %
280x321x125 mm
Ambient operating temp. range -50° to +55° C
Request units PDF Datasheet

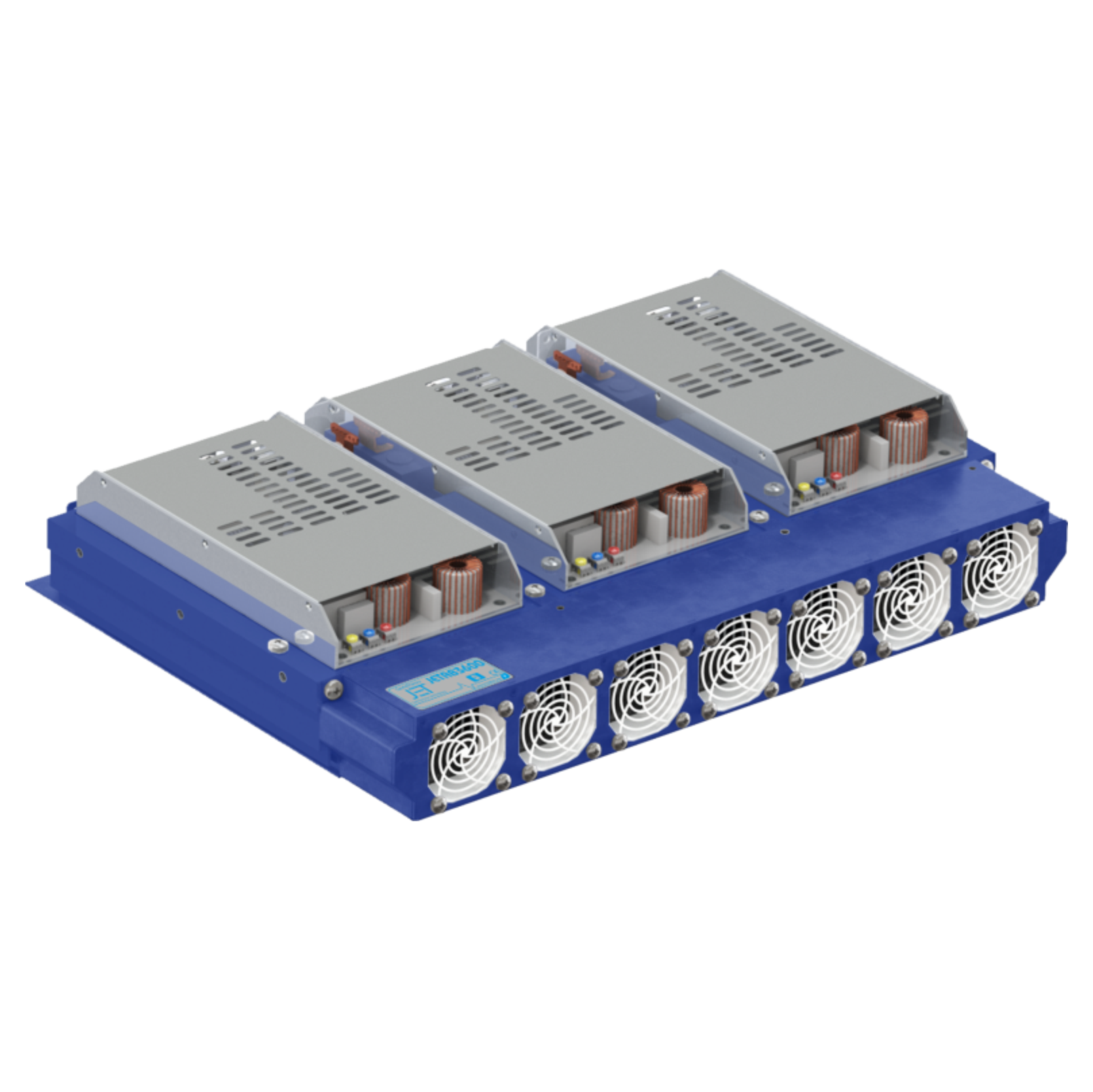

AC/DC: 3600 W JETAB3600 block

Output power 3600 W
Efficiency 88 %
Operating temp. range up to -40° to +85° C
custom heatsink
Request units PDF Datasheet

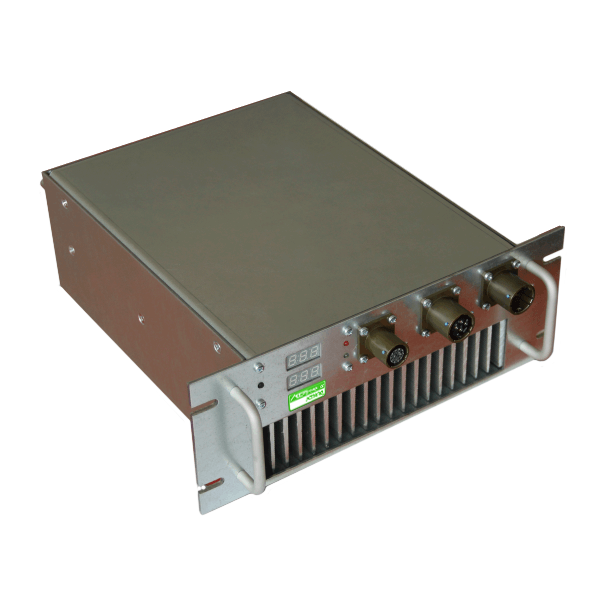

AC/DC: 5000 W JETNAB5000 block, for high frequency load, fanless

Output power 5000 W
Efficiency 92 %
Operating temp. range up to -50° to +65° C
Request units

AC/DC: 5500 W JETAB5500-HP block

Output power 5500 W
Efficiency 90 %
Operating temp. range up to -10° to +45° C
Request units

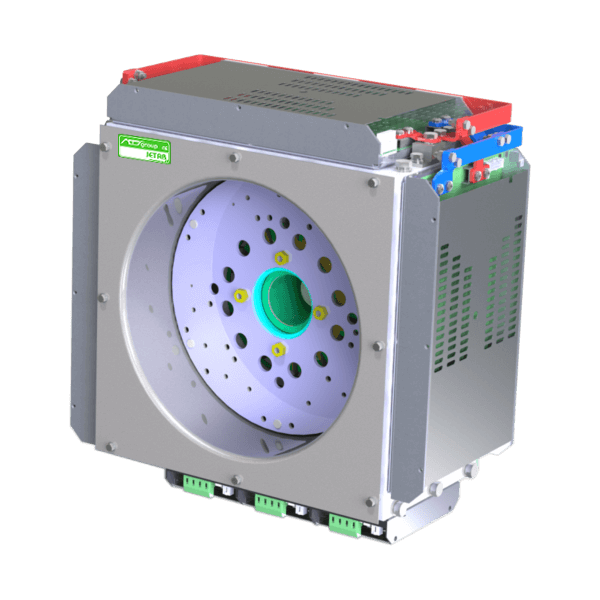

AC/DC: 9000 W JETAB9000 block, for diesel generator

Output power 9000 W
For diesel generator
Output current up to 316 А
Operating temp. range up to -50° to +85° C
Request units PDF Datasheet

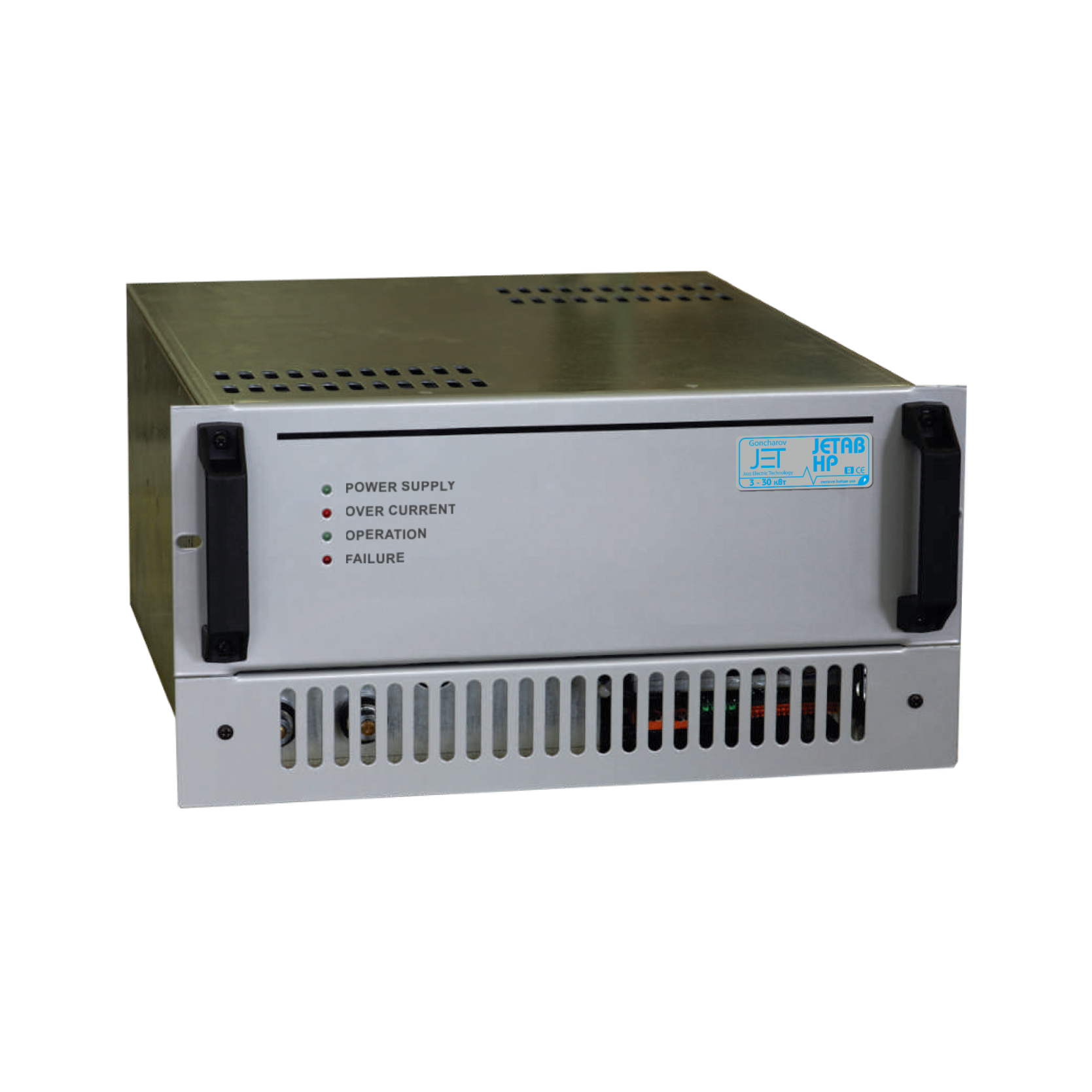

AC/DC: 30 kW JETAB-HP, 19″ rack

Output power up to 30 kW
For 19" rack
Request units PDF Datasheet
