| Input voltage range | Output voltage |
|
DC HV "270" (155-375 VDC) |
24, 27, 36, 48, 60, 120, 150, 200, 300, 400 VDC |
|
DC HV "300" (200-375 VDC) |
|
|
DC HV "150" (82-200 VDC) |
|
|
AC 1ph. "115" (80-138 VAC, 113-195 VDC) |
|
|
AC 1ph. "230" (187-264 VAC, 263-372 VDC) |
|
|
AC 3ph. "220" (187-264 VAC, 263-372 VDC) |
|
|
AC 3ph. "400" (323-440 VAC, 390-620 VDC) |

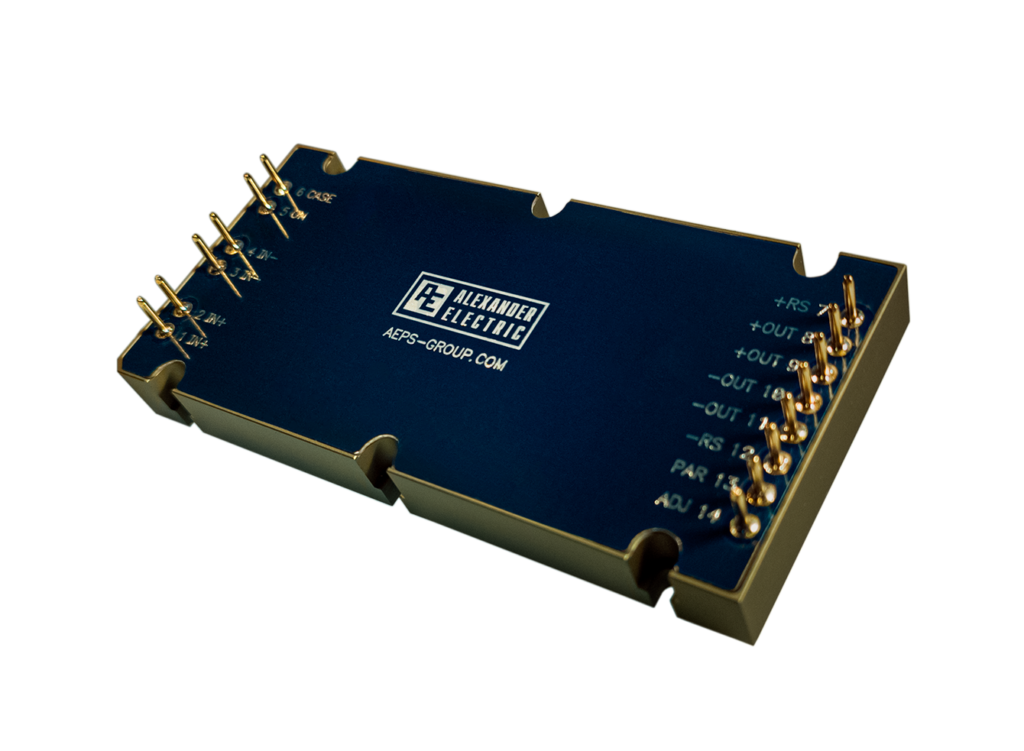

JETDiV series of high voltage input AC/DC - DC/DC isolated converters with the open-type mounting holes meant for operation in harsh environmental conditions. The combination of electro-technical and mechanical parameters creates versatility for the series to be used in various application fields with strong vibrations and mechanical shocks: both low and high altitude in unprotected equipment compartments, in drones, in all types of transport, in supercomputers, in low and high temperature environments, digital signage equipment, in radar systems. The series is an optimal fit for any environment which requires low-profile, minimized dimensions and weight, high efficiency and wide temperature range.
