Models

Power
150W
Density
13W/in³
Efficiency
93%
Dimensions
135×70×20 mm
Case temperature
−40…+90 °C
Power
1300W
Density
18W/in³
Efficiency
92.5%
Dimensions
210×140×41 mm
Case temperature
−40…+95 °C
Power
7000W
Efficiency
93%
Dimensions
400×350×133 mm
Case temperature
−40…+60 °C
Power
150W
Efficiency
91%
Dimensions
110×61×21 mm
Case temperature
−50…+85 °C
  • 115 VAC 400 Hz input
Power
600W
  • 19" mounting
  • Uninterruptible power supply
  • RS-232 interface
Power
1200W
Case temperature
−50…+50 °C
  • Fanless operation
  • For 19" rack, 3U height
Power
3000W
Efficiency
93%
Dimensions
280×321×125 mm
Case temperature
−50…+55 °C
  • 320-480 VAC in, 28 VDC out
Power
3600W
Efficiency
88%
Case temperature
−40…+85 °C
  • custom heatsink
Power
5000W
Efficiency
92%
Case temperature
−50…+65 °C
Power
5500W
Efficiency
90%
Case temperature
−10…+45 °C
Power
9000W
Case temperature
−50…+85 °C
  • For diesel generator
  • Output current up to 316 А
AC/DC custom units and blocks models
Model Power Density Efficiency Dimensions Case temperature Actions
AC/DC: JETNA-MIL-150 150 W 13 W/in³ 93 % 135×70×20 mm −40…+90 °C Request PDF
AC/DC: JETA-MIL-1300 1300 W 18 W/in³ 92.5 % 210×140×41 mm −40…+95 °C Request PDF
AC/DC: JETNAB MIL 7000, 352-477 VAC 7000 W — 93 % 400×350×133 mm −40…+60 °C Request PDF
AC/DC: 150 W JETA150-LP, 115 VAC 400 Hz input 150 W — 91 % 110×61×21 mm −50…+85 °C Request PDF
AC/DC: 600 W IBP600 (UPS), fanless 600 W — — — — Request PDF
AC/DC: 1200 W JETAB1200 block, 19″ rack 3U height, 5 outputs, fanless 1200 W — — — −50…+50 °C Request PDF
AC/DC: 2000 W JETAB2000 block, with integrated filtering and cooling, fanless 2000 W — 93 % — −50…+85 °C Request PDF
AC/DC: 3000 W JETNAB3000-H block, 320-480 VAC in, 28 VDC out, 30 ms hold-up 3000 W — 93 % 280×321×125 mm −50…+55 °C Request PDF
AC/DC: 3600 W JETAB3600 block 3600 W — 88 % — −40…+85 °C Request PDF
AC/DC: 5000 W JETNAB5000 block, for high frequency load, fanless 5000 W — 92 % — −50…+65 °C Request
AC/DC: 5500 W JETAB5500-HP block 5500 W — 90 % — −10…+45 °C Request

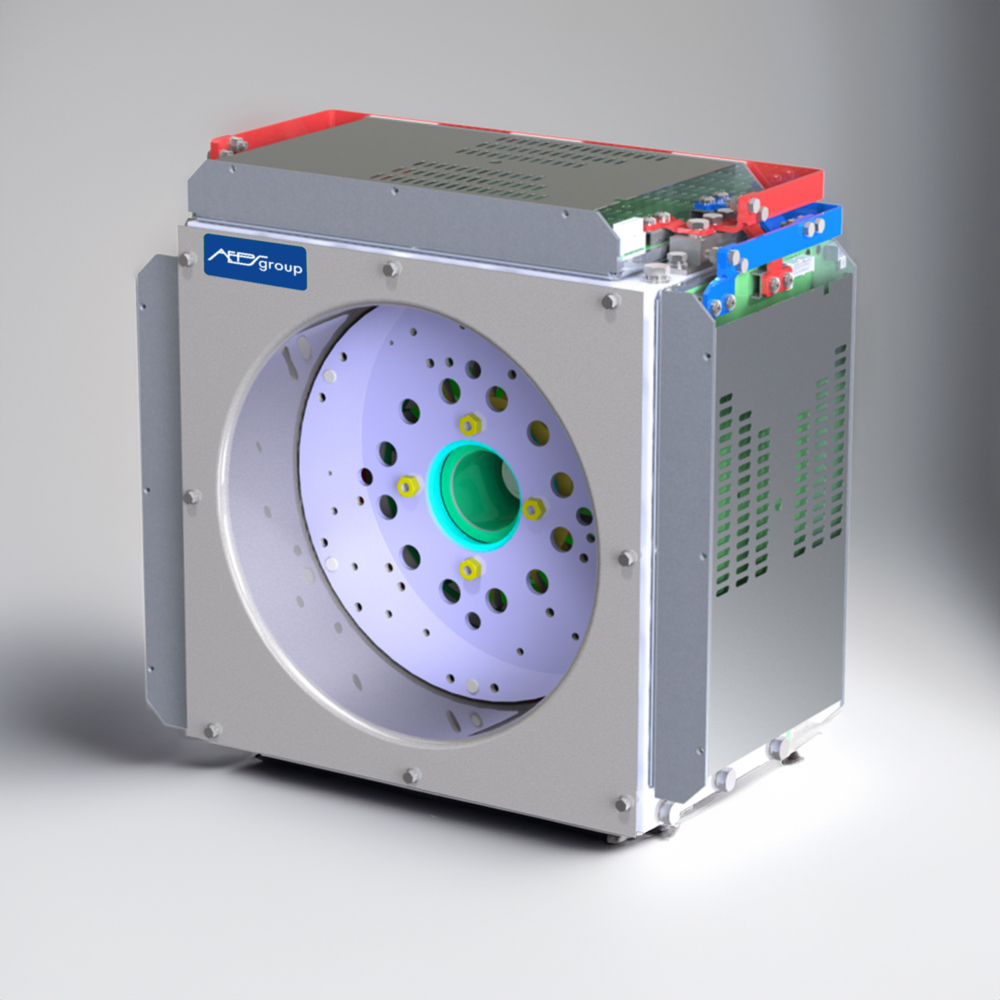

AC/DC: 9000 W JETAB9000 block, for diesel generator 9000 W — — — −50…+85 °C Request PDF
AC/DC: 30 kW JETAB-HP, 19″ rack 30 kW — — — — Request PDF

Compare to scale

Footprints of the whole series, 1 px = 1 mm

  • JETNAB MIL 7000 400 × 350
  • 3000 W JETNAB3000-H block 321 × 280
  • JETA-MIL-1300 210 × 140
  • JETNA-MIL-150 135 × 70
  • 150 W JETA150-LP 110 × 61
AC/DC: JETNA-MIL-150

AC/DC: JETNA-MIL-150

Footprint × height
135 × 70 × 20 mm
Power · efficiency
150 W · 93 %
Power density
13 W/in³
Open the product page

Outlines simplified to the overall dimensions from the datasheet.

Frequently Asked Questions

What types of custom AC/DC power supplies can AEPS-group manufacture?

We can design and manufacture almost any custom power architecture based on your specific technical requirements. Whether you need a non-standard input voltage range, specialized MIL-spec connectors, unique CNC-milled enclosure shapes to fit tight compartments, or extreme power densities, our engineering team can create a bespoke AC/DC solution tailored perfectly to your system.

Do you design custom converters from scratch, or modify existing designs?

Whenever possible, we utilize a “modified standard” approach. By leveraging the field-proven topologies of our standard ruggedized series (like JETNA and JETDiV), we can rapidly develop custom AC/DC units. This significantly reduces Non-Recurring Engineering (NRE) costs and drastically shortens lead times compared to a full ground-up development, while maintaining peak reliability.

Can you build a custom AC/DC converter with multiple non-standard output voltages?

Absolutely. Many complex aerospace and defense systems require a mix of specific logic and analog voltages simultaneously. Instead of forcing you to daisy-chain multiple separate converters—which wastes critical board space and adds weight—we can engineer a custom multi-output power block (e.g., combining 3.3V, 15V, and a high-current 48V rail) inside a single ruggedized enclosure.

Will a custom AC/DC power supply still meet military and environmental standards?

Yes. Every custom unit is built using the same ruggedized DNA as our standard military-grade products. They feature full internal potting, advanced planar magnetics, and baseplate conduction cooling. This ensures your custom AC/DC power supply can operate in extreme temperatures (from -60°C up to +125°C), endure severe vibrations, and meet stringent MIL-STD-810 and MIL-STD-461 compliance requirements.

What is the minimum order quantity (MOQ) for a custom AC/DC project?

We understand that high-end engineering projects, particularly in defense and aerospace, often start with small prototyping runs before mass production. We are highly flexible with MOQs. Our engineering team provides dedicated support from the first prototype batch all the way to full-scale serial production. Contact us with your technical specifications to discuss your project’s scope.

Need different input or output? We can adapt this design.

Discuss your project
