JETNA-LP, 1000-5000 W, 3 fáze, ultra-nízký profil, bez ventilátoru, kritické použití

The series units, besides standard operation in a vast class of radioelectronic and electrical equipment, are meant to be used in critical missions: operation in emergency conditions, operation in case of compromised sealing of the equipment compartment, short-term higher than max power delivery.

Full series description
4 models · −60…+95 °C

Models

JETNA1000-LP

AC/DC
Power
1000W
Density
36W/in³
Efficiency
94%
Rozměry
174×92×29 mm
Case temperature
−60…+95 °C

JETNA2000-LP

AC/DC
Power
2000W
Density
37W/in³
Efficiency
94%
Rozměry
210×116×37 mm
Case temperature
−60…+95 °C

JETNA3000-LP

AC/DC
Power
3000W
Density
37W/in³
Efficiency
94%
Rozměry
250×141×38 mm
Case temperature
−60…+95 °C

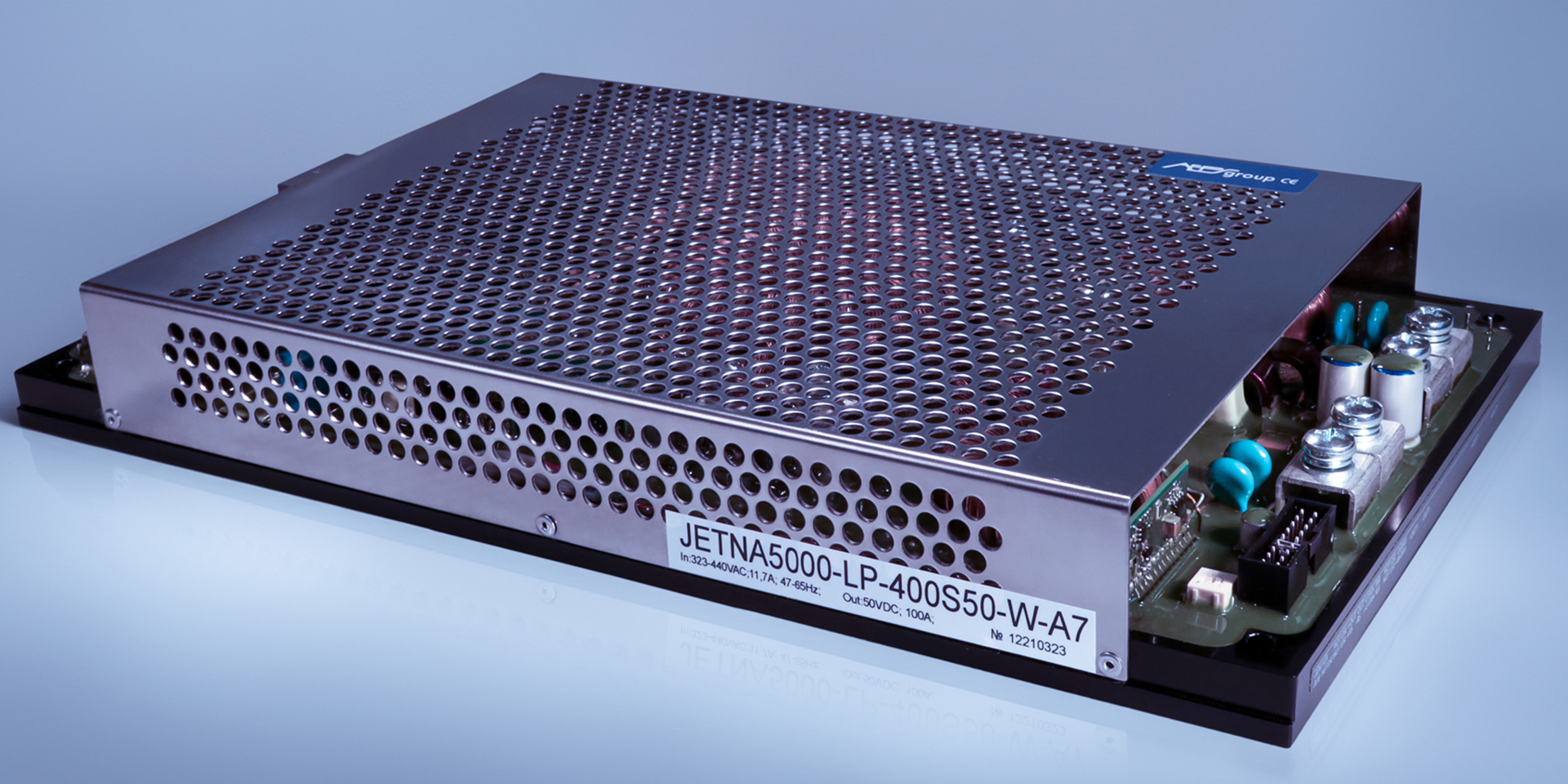

JETNA5000-LP

AC/DC
Power
5000W
Density
42W/in³
Efficiency
94%
Rozměry
300×170×39 mm
Case temperature
−60…+95 °C
JETNA-LP models
Model Power Density Efficiency Rozměry Case temperature Akce
JETNA1000-LP 1000 W 36 W/in³ 94 % 174×92×29 mm −60…+95 °C Request PDF STEP
JETNA2000-LP 2000 W 37 W/in³ 94 % 210×116×37 mm −60…+95 °C Request PDF STEP
JETNA3000-LP 3000 W 37 W/in³ 94 % 250×141×38 mm −60…+95 °C Request PDF STEP
JETNA5000-LP 5000 W 42 W/in³ 94 % 300×170×39 mm −60…+95 °C Request PDF STEP

Compare to scale

Footprints of the whole series, 1.5 px = 1 mm

  • 5000-LP 300 × 170
  • 3000-LP 250 × 141
  • 2000-LP 210 × 116
  • 1000-LP 174 × 92
JETNA1000-LP

JETNA1000-LP

Footprint × height
174 × 92 × 29 mm
Power · efficiency
1000 W · 94 %
Power density
36 W/in³
Open the product page

Outlines simplified to the overall dimensions from the datasheet.

About the series

JETNA-LP in detail

Powerful 3-phase-input Low Profile (LP) units of AEPS-GROUP series JETNA-LP with improved power factor are made for 3-phase mains 400 VAC (delta 323-440 VAC, 3 phases without N), 50 Hz and 220 VAC (delta 187-253 VAC, 3 phases without N), 50 Hz – on request. It’s possible, on request, to provide 400 Hz input models. DC inputs may be used too in any polarity, please consult with the producer.

Made for conductive cooling systems, operational in case temperature range of -60…+100 °C. Other cooling systems may be used too (please see the datasheets).

Electrical features

all JETNA-LP units utilize output synchronous rectification, which brings their efficiency up to 94% – 95%. The units include full set of service functions, up to active current sharing parallel operation. On request it’s possible to order models with high output voltages, up to 500 VDC.

Constructional features

series units JETNA-LP achieve a unique combination of compact design and high efficiency. This results in unprecedented power density of 35 to 42 W/inch3 in their respective power range. Aluminum or copper case base has stiffening ribs and also serves for conductive cooling. Considering that all components significant in weight are connected to the base and submerged in heat-transferring potting – resistance to and durability against mechanical stress is unique. Unique property of the series is ultra-low-profile height (only 29 mm for JETNA1000-LP and 39 mm for JETNA5000-LP) and extreme temperature operating range of –50° C to +85° C or –60° C to +85° C (on request).

AEPS-GROUP JETNA-LP units are optimal to be utilized in application fields 1, 2, 3, 4, 5, 6, 7, 8, 9, 11 – for sealed and protected spaces as well as for aerial objects at heights up to 15 km in unsealed and unprotected spaces: planes, drones, helicopters, hot air balloons and gliding devices, meteoprobes. Also applied in all types of land transport – railway locomotives and wagons, cars, tracked vehicles. The units are also an optimal fit for telecom equipment, mining, supercomputers, radars and informational displays and screens, located in outdoors conditions. At the same time, JETNA-LP units operate in Arctic and Antarctica, in mountains at all heights and in cold or hot deserts etc.

To know more, read following essays: About input ranges, About efficiency, About planarity.

Need different input or output? We can adapt this design.

Discuss your project
