TESND, 20 W - 250 W, robustní krabička s uchy, kritické použití
5 models · −60…+125 °C

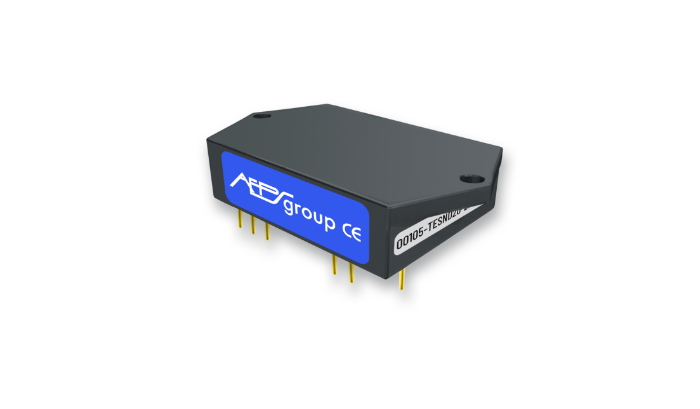

TESND20-F1
DC/DC- Power
- 20W
- Density
- 55W/in³
- Efficiency
- 87%

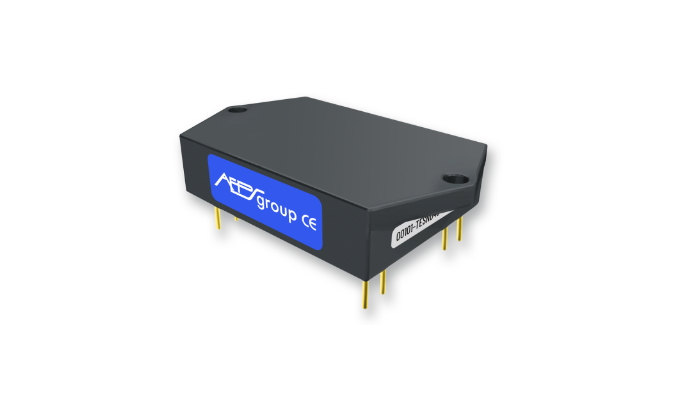

TESND40-F2
DC/DC- Power
- 40W
- Density
- 50W/in³
- Efficiency
- 88%
TESND80-F3
DC/DC- Power
- 80W
- Density
- 75W/in³
- Efficiency
- 91%

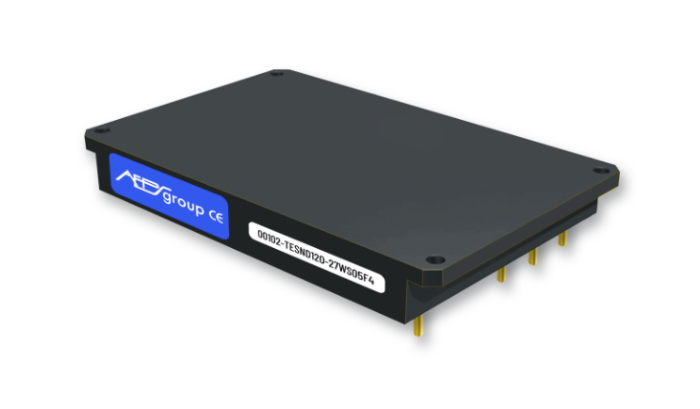

TESND120-F4
DC/DC- Power
- 120W
- Density
- 64W/in³
- Efficiency
- 92%

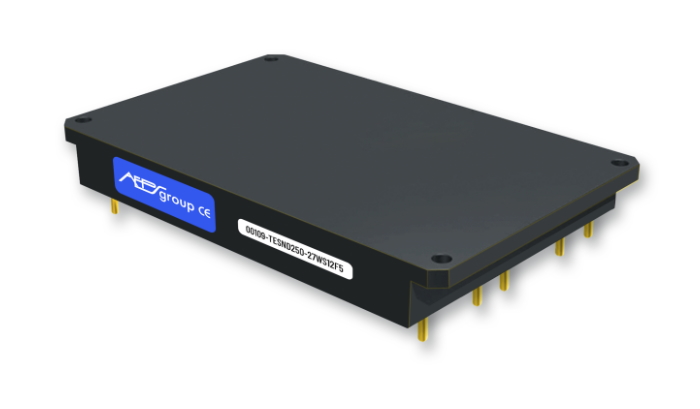

TESND250-F5
DC/DC- Power
- 250W
- Density
- 82W/in³
- Efficiency
- 92%
| Model | Power | Density | Efficiency | Rozměry | Case temperature | Akce |
|---|---|---|---|---|---|---|
| TESND20-F1 | 20 W | 55 W/in³ | 87 % | 30×20×10 mm | −60…+125 °C | Request › PDF STEP |
| TESND40-F2 | 40 W | 50 W/in³ | 88 % | 40×30×11 mm | −60…+125 °C | Request › PDF STEP |
| TESND80-F3 | 80 W | 75 W/in³ | 91 % | 48×33×11 mm | −60…+125 °C | Request › PDF STEP |
| TESND120-F4 | 120 W | 64 W/in³ | 92 % | 58×40×11 mm | −60…+125 °C | Request › PDF STEP |
| TESND250-F5 | 250 W | 82 W/in³ | 92 % | 73×53×13 mm | −60…+125 °C | Request › PDF STEP |
Compare to scale
Footprints of the whole series, 6 px = 1 mm
Top view · origin bottom left · grid 5 mm
20-F1 · 30 × 20 × 10
40-F2 · 40 × 30 × 11
80-F3 · 48 × 33 × 11
120-F4 · 58 × 40 × 11
250-F5 · 73 × 53 × 13
- 250-F5 73 × 53
- 120-F4 58 × 40
- 80-F3 48 × 33
- 40-F2 40 × 30
- 20-F1 30 × 20
TESND20-F1
- Footprint × height
- 30 × 20 × 10 mm
- Power · efficiency
- 20 W · 87 %
- Power density
- 55 W/in³
TESND40-F2
- Footprint × height
- 40 × 30 × 11 mm
- Power · efficiency
- 40 W · 88 %
- Power density
- 50 W/in³
TESND80-F3
- Footprint × height
- 48 × 33 × 11 mm
- Power · efficiency
- 80 W · 91 %
- Power density
- 75 W/in³
TESND120-F4
- Footprint × height
- 58 × 40 × 11 mm
- Power · efficiency
- 120 W · 92 %
- Power density
- 64 W/in³
TESND250-F5
- Footprint × height
- 73 × 53 × 13 mm
- Power · efficiency
- 250 W · 92 %
- Power density
- 82 W/in³
Outlines simplified to the overall dimensions from the datasheet.
Need different input or output? We can adapt this design.
